FORD AXOD - AXOD VALVE BODY GASKET CHANGES

Posted on by Amos

FORD AXOD - AXOD VALVE BODY GASKET CHANGES

Since the start of production in 1986, the pump and valve body gaskets have changed for every model year on the AXOD. There are now a total of 12 gaskets for this transaxle, 4 for each model year, and they WILL NOT INTERCHANGE.

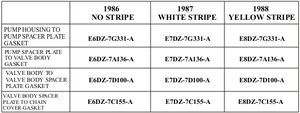

Use the chart provided below to determine the application, as the gaskets are color coded with a stripe for easy identification.

The OEM part number is also imprinted on the gaskets, so you can use the same chart above to determine location, so that you do not get the gasket on the wrong side of the spacer plate.
